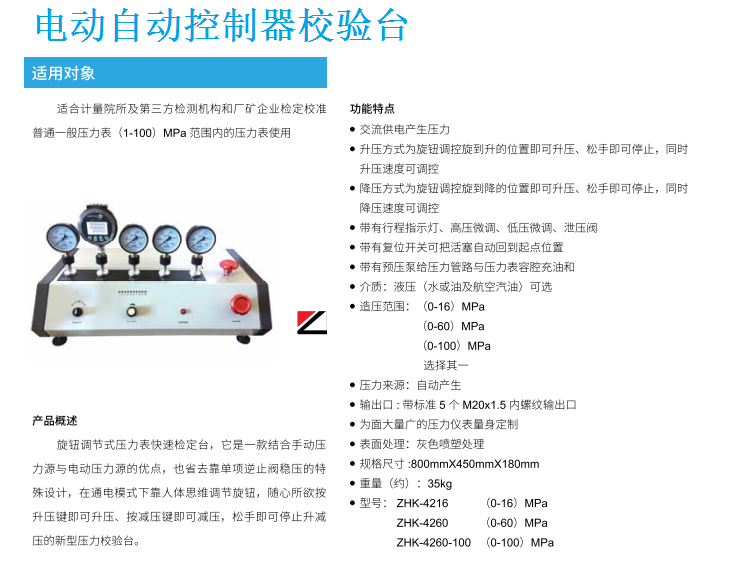

Electric automatic controller calibration table
Product purpose:
The calibration bench of electric automatic controller shall be used for the calibration of pointer pressure gauge, pressure sensor, differential pressure sensor, spring tube, pressure sensitive element and pressure transmitter. It is a process and testing equipment designed and manufactured in full accordance with relevant national, industrial and enterprise standards. It is widely used in pressure instrument production factories, product quality inspection institutes Scientific research institutions and other units quickly verify the production batch of various pressure instruments.
Product features:
v Pressure generated by AC power supply
v The boosting method is to turn the knob to the rising position to boost the pressure, release the hand to stop, and the boosting speed can be adjusted at the same time
v The depressurization mode is to turn the knob to the down position to boost the pressure and stop it when you let go. At the same time, the depressurization speed can be adjusted
v With travel indicator, high pressure trim, low pressure trim, pressure relief valve
v With reset switch, the piston can automatically return to the starting position
v With pre pressure pump to fill the pressure pipeline and pressure gauge chamber with oil and
v Medium: hydraulic (water or oil) optional
v Pressure range: (0-100) MPa
v Pressure source: automatically generated
v Export: with standard 5 m20x1 5 female outlet
v Tailored for a wide range of pressure instruments
v Weight: 30kg
v Model:ZHK-4260
