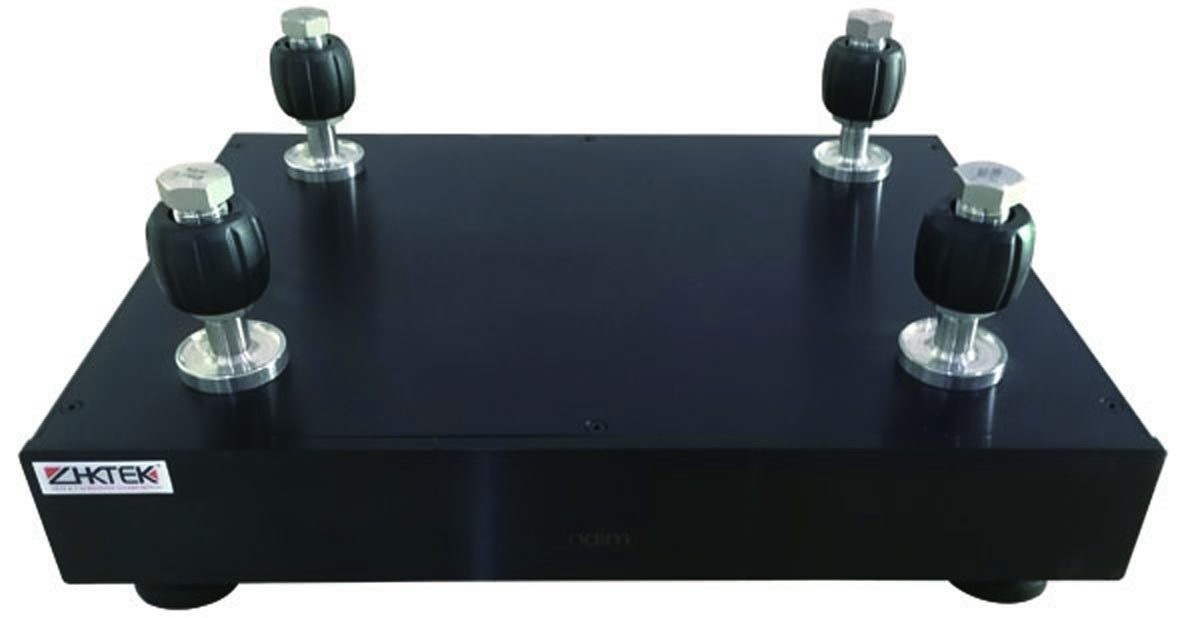

控制器壓力表連接校驗臺
產品用途：適用于（-0.1-60）MPa任何壓力儀表校驗連接使用
應用于指針壓壓力表，壓力傳感器、差壓傳感器成品，彈簧管、壓力敏感元件的壓力校驗使用，用于批量校準檢定連接擴展使用。
適用對象：

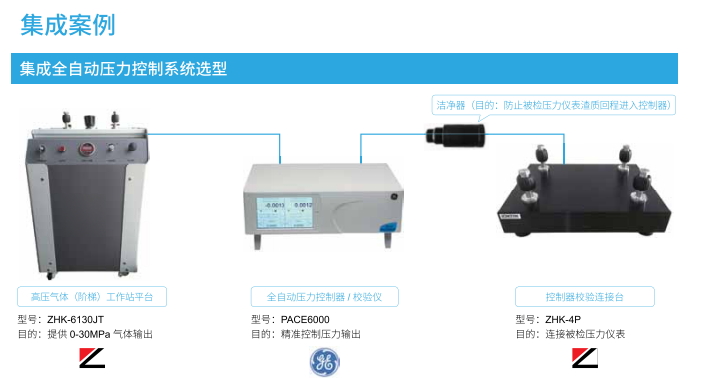

配合壓力工作站平臺使用，全自動壓力控制器/校驗儀搭建量大面廣壓力校驗系統
產品概述：
配合壓力工作站平臺使用，全自動壓力控制器/校驗儀搭建量大面廣壓力校驗系統，同時帶有自動排污閥可定期排泄校驗臺中的殘留介質和排泄作用
功能特點：
v 四個表位內螺紋M20X1.5的標準輸出口
v 介質：空氣或氮氣或液體
v 壓力范圍：（-0.1-60）MPa
v 帶泄壓閥定期排泄校驗臺中殘留介質
v 工作能力：四表為輸出可同時檢定4塊壓力儀表
v 使用條件：配合壓力控制器/校驗臺使用
v 標準接口：內螺紋M20x1.5
v 穩定度：0.01
v 材質選擇：鋁合金
v 表面處理：黑色噴砂處理
v 結構方式：臺式
v 尺寸大?。?/span>430mmx312mmx70mm
v 重量（約）：3kg
v 型號：ZHK-4P
型 號 | 名 稱 | 調節量程 | 介 質 | 規格尺寸 |
ZHK-4P | 壓力表連接校驗臺 | （-0.1-6）MPa | 空氣 | 定制 |
ZHK-4P | 壓力表連接校驗臺 | （0-25）MPa | 空氣 | 定制 |
ZHK-4P | 壓力表連接校驗臺 | （0.1-6）MPa | 液體 | 定制 |
ZHK-4P | 壓力表連接校驗臺 | （1-60）MPa | 液體 | 定制 |
備注 | 真空、氣體、液體或禁油臺使用時分開配置，以免污染臺重復使用 | |||
本網站有關產品技術指標僅供參考，不足之處請指教！
Controller pressure gauge connection calibration bench
Product application: applicable to the calibration connection of any (- 0.1-60) MPa pressure instrument
It is applied to the pressure calibration of pointer pressure gauge, pressure sensor, differential pressure sensor, spring tube and pressure sensitive element, and is used for batch calibration, verification and connection expansion.
Applicable to:
With the use of the pressure workstation platform, the full-automatic pressure controller / calibrator builds a large-scale and wide-ranging pressure calibration system
Product overview:
With the use of the pressure workstation platform, the full-automatic pressure controller / calibrator builds a pressure calibration system with large quantity and wide range. At the same time, it is equipped with an automatic blowdown valve, which can regularly drain the residual medium and drainage effect in the calibration table
Functional features:
v Four gauge internal thread m20x1 Standard output of 5
v Medium: air or nitrogen or liquid
v Pressure range: (- 0.1-60) MPa
v Regularly drain the residual medium in the calibration bench with pressure relief valve
v Working capacity: four meters are output, and four pressure instruments can be verified at the same time
v Service conditions: used with pressure controller / calibration bench
v Standard interface: internal thread m20x1 five
v Stability: 0.01
v Material selection: aluminum alloy
v Surface treatment: black sand blasting
v Structure: Desktop
v Size: 430mmx312mmx70mm
v weight (about): 2kg
v Model:ZHK-4P
